Compact • Wide-Angle • Industrial-Grade Durability

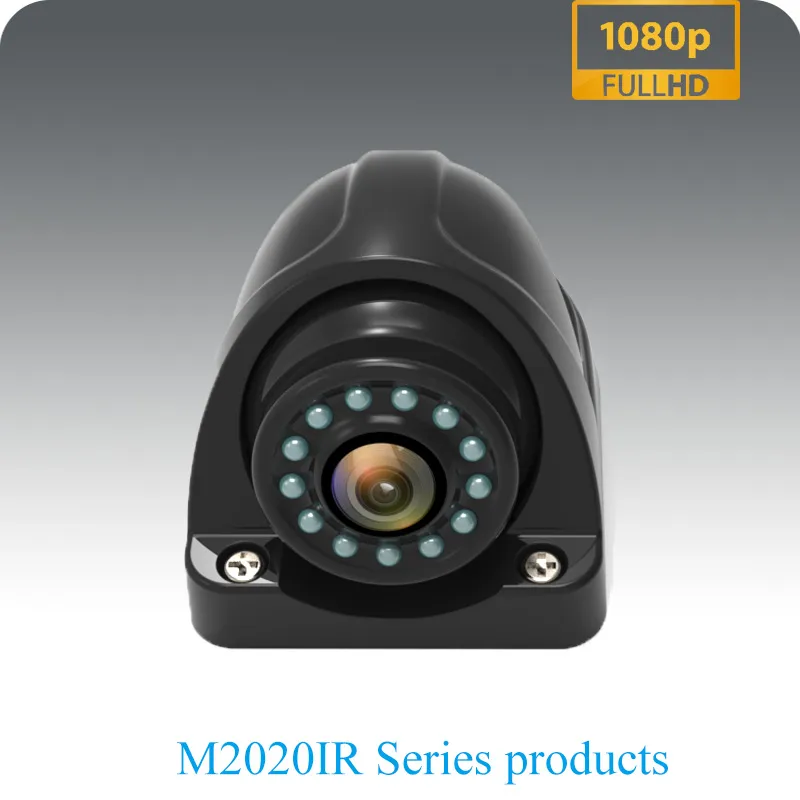

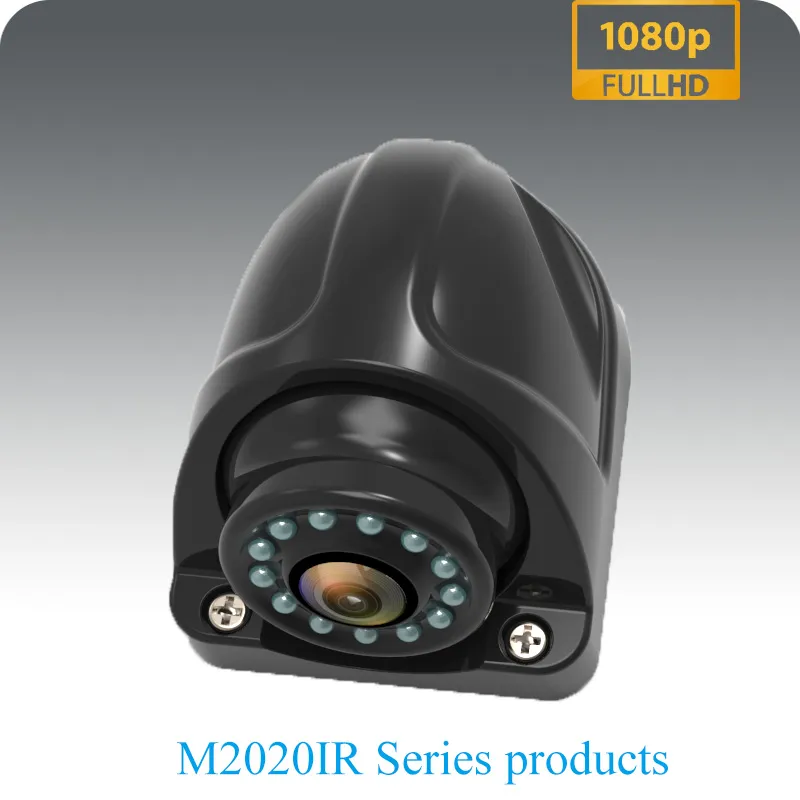

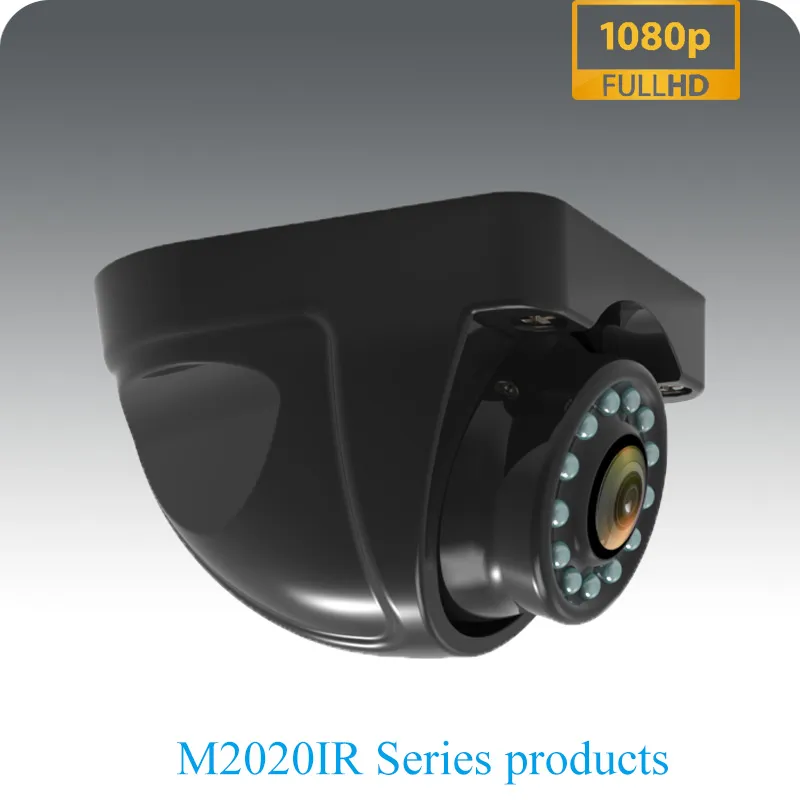

The CNMZTIND M2020IR Series is a professional-grade 1080P vehicle camera designed for commercial fleets, logistics, mining, and specialty vehicles. With advanced AHD CMOS imaging, IP69K protection, and multiple FOV lens options (180° fisheye / 120° wide angle), the M2020IR delivers exceptional clarity and reliability in all environments — day or night.
⭐ Key Features
Ultra-Clear HD Video Performance
Equipped with a 2-megapixel AHD CMOS sensor
True 1920×1080 (1080P) effective resolution
Delicate, stable coaxial HD output with digital wide dynamic range
Smooth video with 30fps full frame rate
Superior Low-Light Capability
Excellent performance in low-illumination environments
M2020IR model includes high-power IR LEDs for enhanced night vision
Minimum illumination: 0.01Lux @ F1.2 (AGC ON)
180° / 120° Wide Field of View Options

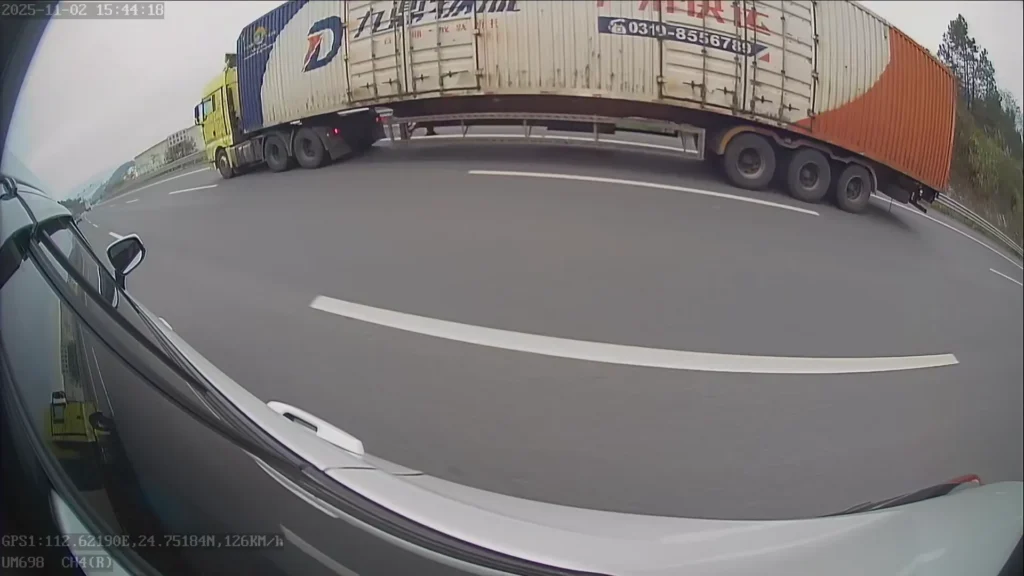

Optional 180° fisheye lens for ultra-wide coverage
120° linear FOV lens for clear and distortion-controlled imaging
Ideal for trucks, vans, buses, forklifts, heavy equipment, and blind-spot elimination
Industrial-Strength Waterproof & Dustproof Protection
IP69K waterproof rating — built for pressure-wash and extreme weather
Silicone composite housing with superior heat dissipation
Operating temperature: –25°C to 70°C
Designed for long-term use in harsh, outdoor, and vibration-heavy environments
Flexible Installation & Compatibility
Compact size: 68×51×43mm, weight: 110g
Supports vertical or horizontal mounting
Adjustable angle for perfect positioning
Multiple connector options:
BMW connector
Aviation connector
BNC connector (optional)
Power Efficient & Durable
Wide voltage input: DC 9–14V
Ultra-low power consumption: <0.96W
Shock-resistant body for stable mobile operation
